Aircraft Specialty Flightlines has complete “drop in” packages for RV14/14A brake hoses. For the ultimate in customization, we now offer our brake hose kits in std clear, red, blue, or black.
RV14 Brake Kit #1 - Standard RV-14A BRAKE HOSE KIT

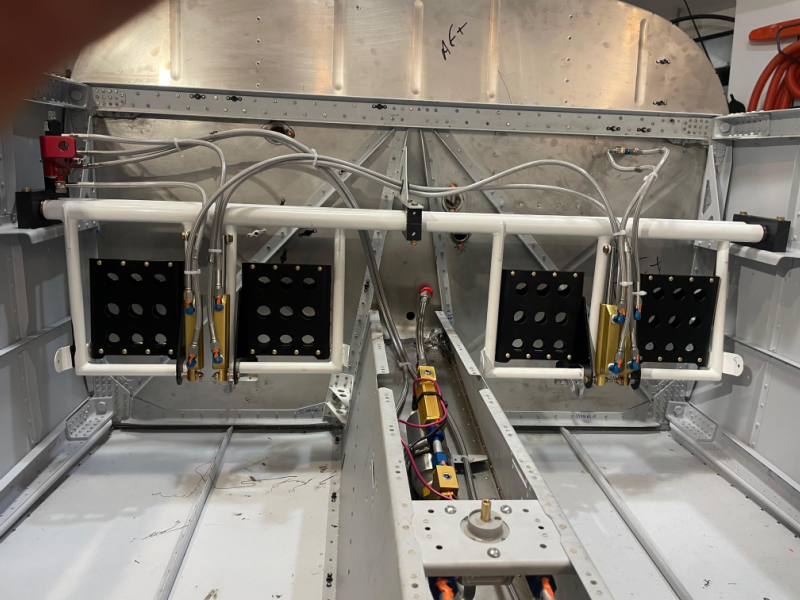

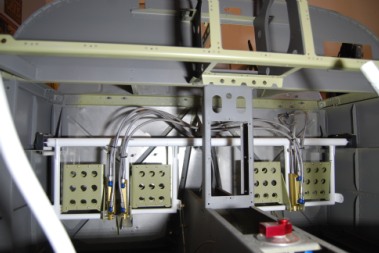

This kit includes all the cabin brake lines as well as gear leg hoses for your 14a. All your plastic hoses and plastic/brass compression fittings are replaced by aluminum AN Flare fittings that are included with this kit.
RV14 Brake Kit #2 - Standard RV-14TW BRAKE HOSE KIT
The same as the kit #1 above, but configured for the RV14TW.
RV14 Brake Kit #3 - Standard RV-14A BRAKE HOSE KIT WITH PB VALVE

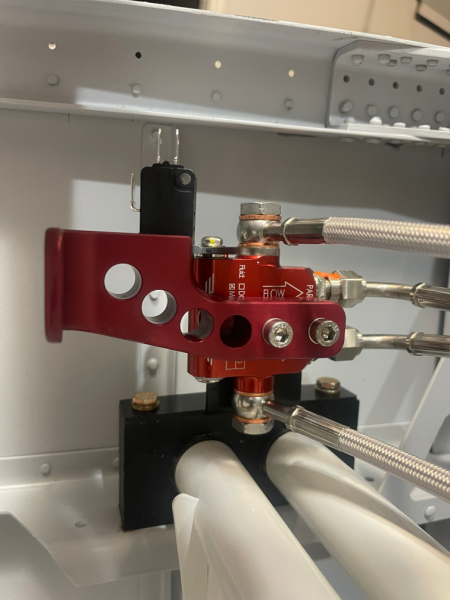

This is the same as kit #1 above except we also include a very high quality parking brake valve made by Beringer that mounts on the Pilot side of the aircraft with an included mounting bracket. We also include a CNC Machined Bracket that mounts to the PB valve with integrated microswitch for PB indications, a bowden clamp, B nut, and the cable that actuates your PB valve. This kit makes it easy to install the entire system and is very complete.
RV14 Brake Kit #3A MATCO - RV-14A BRAKE HOSE KIT SETUP FOR MATCO PB VALVE-
The same as the kit above, EXCEPT setup for a MATCO PB valve. Matco Valve and mounting hardware not included. This kit is brake lines and fittings only and is as shown in pages 8-15 of the install manual. This is for the builder who wants to fabricate their own mounting brackets and use the Matco valve to save a bit on the installation.
RV14 Brake Kit #4 - Standard RV-14TW BRAKE HOSE KIT WITH PB VALVE
The same as the kit #3 above, but configured for the RV14TW.
RV14 Brake Kit #4A MATCO - Same as Kit 3A but setup for an RV14 TW Aircraft.

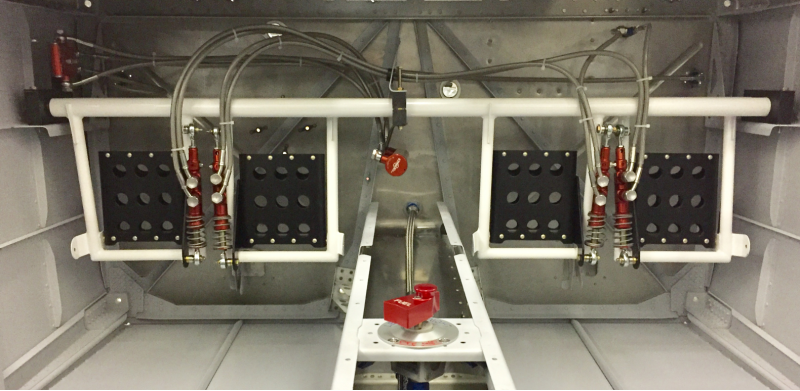

KITS 5-12 Below are for Beringer Setups (Click for Image)
As a Beringer dealer, we can offer you a complete kit with ALL Beringer Components, pre built and pressure tested hose assemblies, brackets for the PB valve and mounting components, and an optional Sensair Tire Pressure monitoring system. Here is a general “deletion list” to omit from your Vans order when doing Beringer components. It is for the TW. For the 14A, you’ll want to also delete the nosewheel assembly.
RV14 Brake Kit #5 - BERINGER RV-14A COMPLETE KIT WITH PB AND ANTI SKID VALVE- Includes all Beringer and ASF components to install a Beringer kit in your RV14A with a PB and Anti Skid Valve.
RV14 Brake Kit #6 - BERINGER RV-14A COMPLETE KIT WITH PB BUT WITHOUT ANTI SKID VALVE- Same as Kit 5 but without an Anti Skid Valve
RV14 Brake Kit #7 - BERINGER RV-14A COMPLETE KIT WITHOUT PB OR ANTI SKID VALVE- Same as Kit 5 but without a Parking Brake or Anti Skid Valve
RV14 Brake Kit #8 - BERINGER RV-14TW COMPLETE KIT WITH PB AND ANTI SKID VALVE- Includes all Beringer and ASF components to install a Beringer kit in your RV14TW with a PB and Anti Skid Valve.
RV14 Brake Kit #9 - BERINGER RV-14TW COMPLETE KIT WITH PB BUT WITHOUT ANTI SKID VALVE- Same as Kit 8 but without an Anti Skid Valve
RV14 Brake Kit #10 - BERINGER RV-14TW COMPLETE KIT WITHOUT PB OR ANTI SKID VALVE- Same as Kit 8 but without a Parking Brake or Anti Skid Valve(RV14 Tailwheel with Anti Skid and PB valve)
RV14 Brake Kit #11 - BERINGER SENSAIR SYSTEM FOR RV14A- Includes the Beringer Tire Pressure Monitoring system for your RV14A
RV14 Brake Kit #12 - BERINGER SENSAIR SYSTEM FOR RV14TW- Same as kit #11 but for Tailwheel Aircraft
RV-14/14A Brake Kits
2024 Aircraft Specialty LLC
LEAD TIME ON BERINGER PACKAGES IS UP TO 3 MONTHS. -
