RV10 BRAKE KITS

KIT 102–0 Pic 1 Pic 2 Pic 3 Pic 4 Pic 5

H1-Pilot Side Right Pedal Bottom Hose to Firewall Top Fitting

H2 - Copilot Right Pedal Top Hose to reservoir

H3- Pilot Side Left Pedal Bottom to Firewall Bottom Fitting

H4- Copilot Left Pedal top Hose to reservoir

H5/H6 - Crossover Hoses (Right pedal Bottoms to Left Pedal Tops) (Can go through hole in bracket with protection or be secured below pedal bar)

Kit 102-1 Pic 1 Pic 2

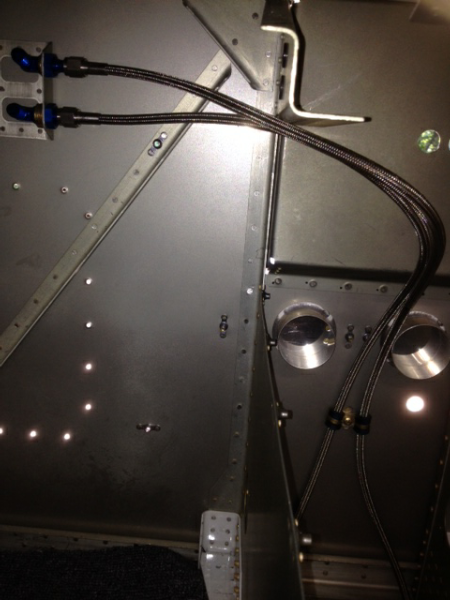

H1- Bottom Firewall Fitting to Left Side Tunnel (Hose can be routed through lightening hole with protection or be secured below pedal bar)

H2- Top Firewall Fitting to Right Side Tunnel (Hose can be routed through lightening hole with protection or be secured below pedal bar)

Kit 102-2 Pic 1 Pic 2

H1/H2 - Hoses are identical and are center tunnel to fuselage exit point hoses

Kit 102-3 Extra slack in hoses is for caliper area to ensure side loading not placed on it. (Stock and Matco XL caliper)

H1/H2 - Hoses are identical and are gear leg hoses.

RV10 FUEL KITS

Kit 103-3 PIC 1

H1 - Andair FS20X7T Valve to AFP Pump. (IMAGE ABOVE DOES NOT SHOW FILTER….use image above only to install forward part from firewall to pump)  More information located in this document.

H2- Fuel pump to firewall.

Kit 103-4 Pic 1 Pic 2 Pic 3 Pic 4 Pic 5 Pic 6 Pic 7

H1/H2 - Valve to Aft Tunnel

H3/H4- Tunnel to Side Bulkhead Bushing (Builder must provide washer to hold in Bushing)

H5/H6 Wing Hoses
